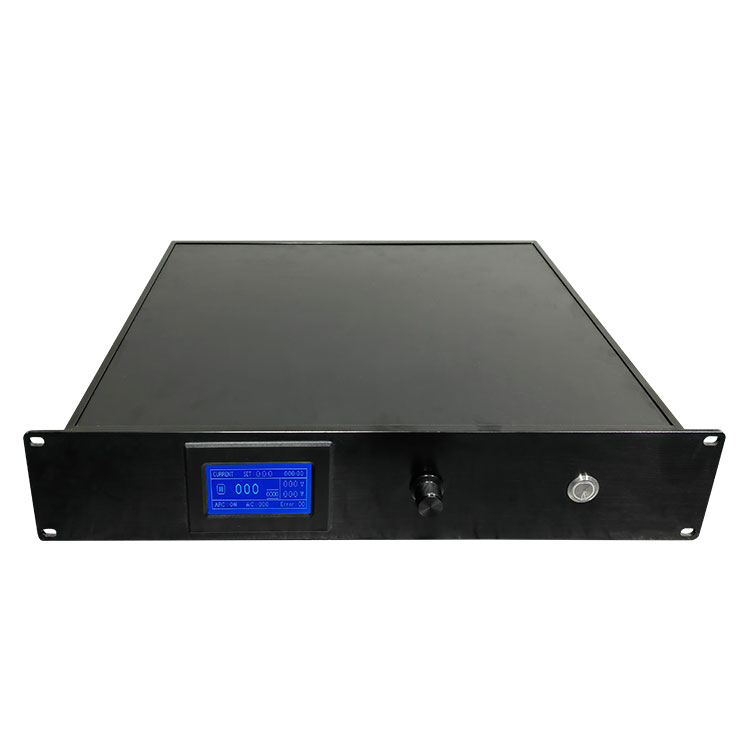

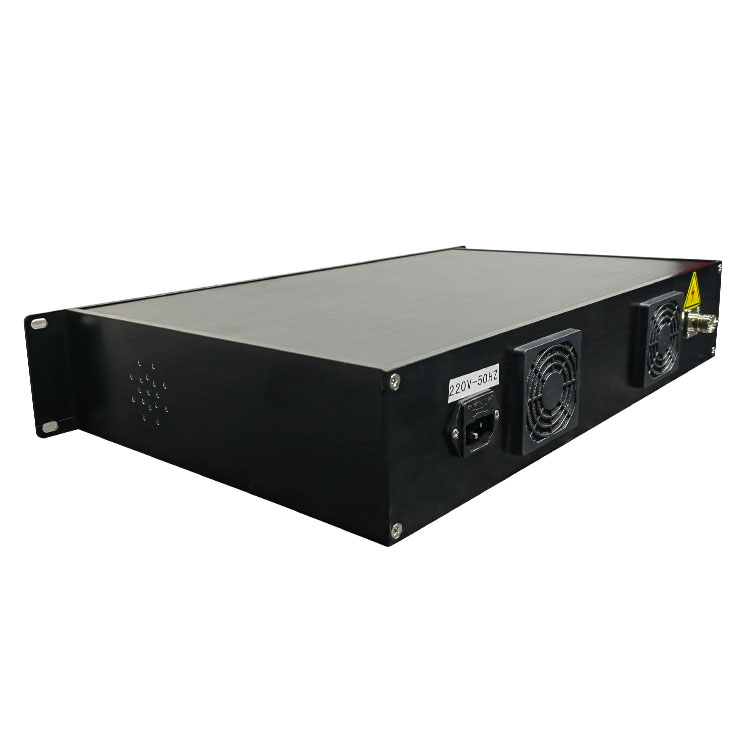

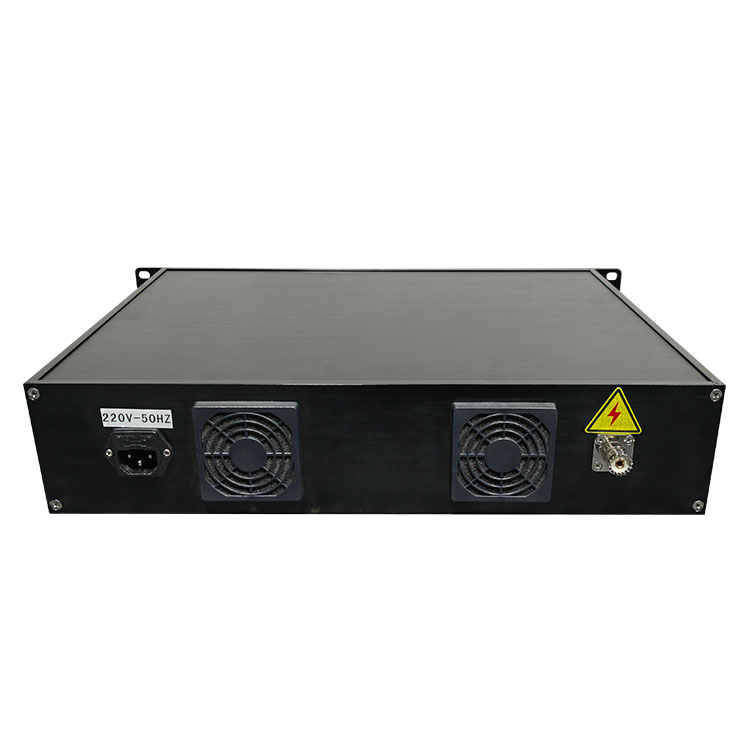

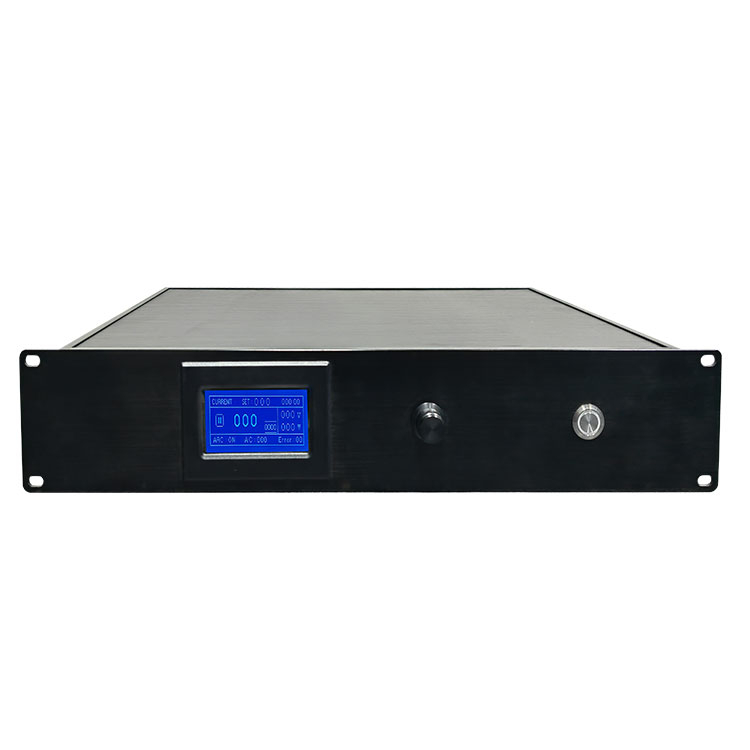

Magnetron Sputtering DC Power Supply

The CY-DC500 and CY-DC1000 models are multifunctional DC power supplies designed using advanced high-frequency PWM switching power supply control technology, microcomputer control technology, comprehensive feedback control technology, and advanced circuit design technology. They are used for magnetron sputtering coating, plasma generators, sputtering, and CVD biasing.

Product Overview:

Magnetron sputtering using DC power supply is an effective and economical choice for depositing conductive materials, such as metals or transparent conductive oxides (TCO). For magnetic materials such as Fe (iron), Ni (nickel), or Co (cobalt), DC magnetrons can be configured with specially selected magnets to generate plasma in a strong magnetic field.

Product Features:

Three operating modes: constant voltage, constant current, and constant power.

High control accuracy, up to 0.1% + 1 digit.

Multiple intelligent protection and fault detection functions, ensuring high reliability.

RS232 or RS485 communication interface for full remote control and telemetry.

External control interface for external analog control functions.

20-microsecond fast arc suppression function, effectively preventing target discharge, providing good protection for the magnetron target and material.

Dual-channel output, switchable between local and remote control.

Soft start function, adjustable from 1 to 10 seconds locally or remotely.

Compact and lightweight design, with maximum dimensions of 483 x 89 x 200 mm and weighing only 3.8 kg.

Timer function, adjustable from 1 to 65535 seconds.

4.3-inch color LCD screen with touch operation for easy and convenient use.

Two output voltage options: 600V and 1200V.

Purchase Information:

If you are interested in our magnetron sputtering DC power supply, please contact us for more information and a quotation.

Phone: +86 18516380382

Email: Jimmy@cysitech.com

Contact Person: Jimmy Hao

WeChat: +86 18516380382

Technical Specifications:

 Precautions:

1. The power supply contains high voltage internally; do not allow any metal objects or liquids to enter the unit to prevent danger or damage. Disassembly by non-professionals is prohibited. Any disassembly or modification during the warranty period will void the warranty.

2. As the power supply is a precision device, handle with care during transport and installation to prevent internal damage or parameter changes.

3. In case of failure, replace parts with components of the same performance to avoid affecting performance and reliability.

4. The power supply contains a microcomputer control chip and should not be used in strong magnetic or interference environments.

5. Do not use in high temperature, high humidity, or dusty environments to avoid affecting service life.

6. Do not use in environments with flammable or explosive dust and gases to prevent dust and gas explosions.

7. Ensure the power supply is well grounded during use to avoid interference with the power supply and other equipment.
