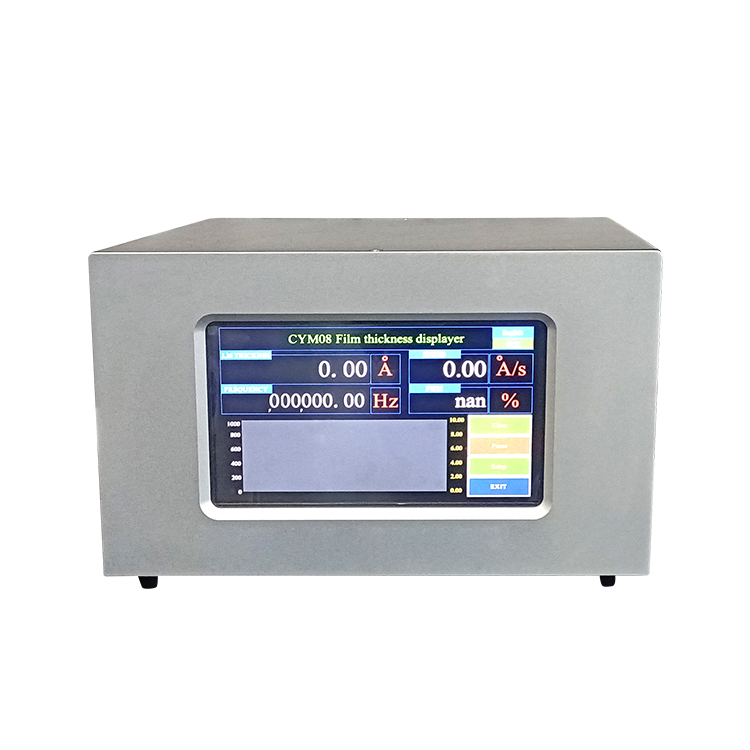

CY high precision film thickness tester for magnetron sputtering coating machine

CY high precision film thickness tester, also known as film thickness gauge, is a precision instrument used to measure the thickness of surface coatings or films of materials. It is widely used in manufacturing, metal processing, chemical industry, commodity inspection and various university research institutes.

The film thickness meter can accurately measure the thickness of coatings, coatings and films, thereby ensuring the accuracy and quality of the surface treatment process. It is mainly used in magnetron sputtering coating machines, high vacuum evaporation coating machines, electron beam evaporation systems, PLD pulsed laser sputtering deposition equipment, multifunctional thin film deposition systems, etc.

Features:

1.High precision：The film thickness gauge can provide high-precision measurement results. For example, the high-precision film thickness gauge uses imported high-quality sensors, and the thickness measurement resolution is as high as 0.1 microns, which ensures the stability and accuracy of the test results.

2. Wide application：The film thickness gauge is suitable for the thickness measurement of a variety of materials and products, including metals, plastics, ceramics, glass, etc. This is because these materials are good sound conductors and can achieve high-precision detection services. In addition, the film thickness gauge can also be equipped with a variety of dual crystals with different frequencies and different chip sizes to achieve efficient product thickness measurement.

3.Intelligent control：LCD display, simple operation, equipped with USB interface, can record, store, print data and connect to computers and printers.

4.Small size：small and beautiful appearance, simple and easy to operate, long service life.

Contact us:

If you are interested in our film thickness tester, please contact us for more information and quotation.。

Tel：86 159 3625 3205

Email：zerlinda@zztainuo.com

Contact：Zerlinda

Wechat：86 159 3625 3205

WhatsApp:86 159 3625 3205

Technical Specifications:

Main components：

 Application case "Application of film thickness tester in magnetron coating machine"

Experimental preparation:

1.Equipment inspection and calibration:

Ensure that the magnetron sputtering coating machine and film thickness tester are in good working condition.

Calibrate the film thickness tester according to the model and instructions of the film thickness tester to ensure the accuracy of the measurement.

2.Material preparation：

Prepare the substrate to be coated

Prepare coating materials according to experimental requirements.

3.Environment Preparation：

Ensure that the laboratory environment meets the experimental requirements, such as temperature, humidity, etc.

Clean the workbench and ensure the experimental environment is tidy.

Experimental procedures:

Substrate cleaning:

Use appropriate cleaning agents and methods to clean the substrate to remove impurities and oil stains on the surface.

After cleaning, rinse with deionized water and dry the substrate in an oven.

Substrate loading:

Place the dry substrate on the stage of the magnetron sputtering coater and fix the position.

Parameter settings:

Set the parameters of the magnetron sputtering coating machine according to experimental requirements, such as power, gas pressure, time, etc.

Ensure that the parameters meet the experimental design requirements.

Start coating:

Start the magnetron sputtering coater and start the coating process.

Monitor parameter changes during the coating process and record data.

Film thickness measurement:

After coating, take out the substrate and use a film thickness tester to measure the film thickness.

When measuring, pay attention to the selection of test points to ensure that the data is representative.

Data recording and analysis:

Record the film thickness measurement results and compare them with the expected results.

Analyze the consistency and uniformity of film thickness based on the measured data.

Experimental results evaluation:

Evaluate whether the experimental results are in line with expectations.

Analyze the results and find possible improvement measures.

Subsequent processing:

Cleaning the device:

Turn off the equipment and clean up the experimental site to ensure the cleanliness of the equipment and environment.

Summary and Report:

Summarize the experimental process and results and write an experimental report.

Include the experimental purpose, methods, results, discussion and conclusion.

Through the above steps, the film thickness test experiment can be effectively carried out on the magnetron sputtering coating machine to ensure the reliability and repeatability of the experiment.
