Pulsed Laser Deposition Equipment for Gas Sensor Preparation

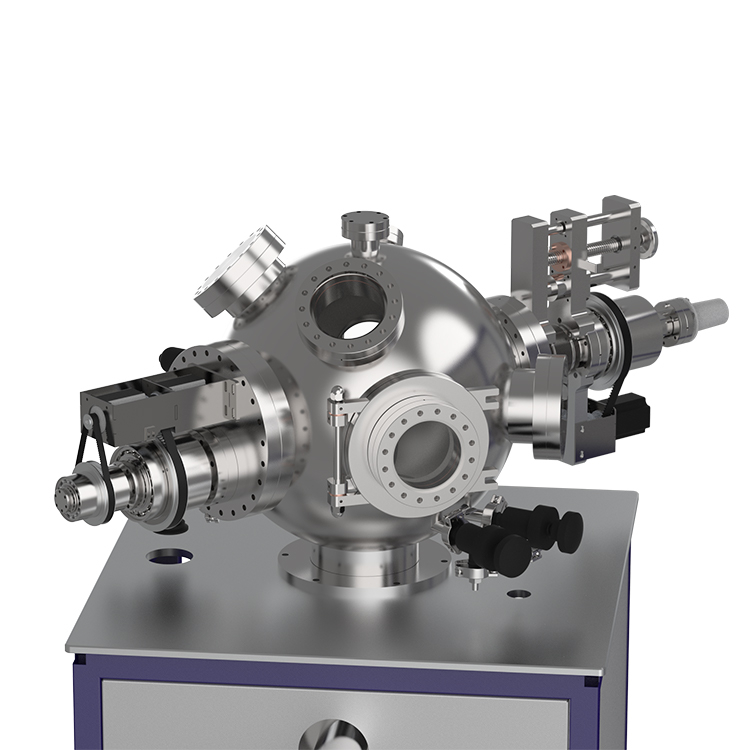

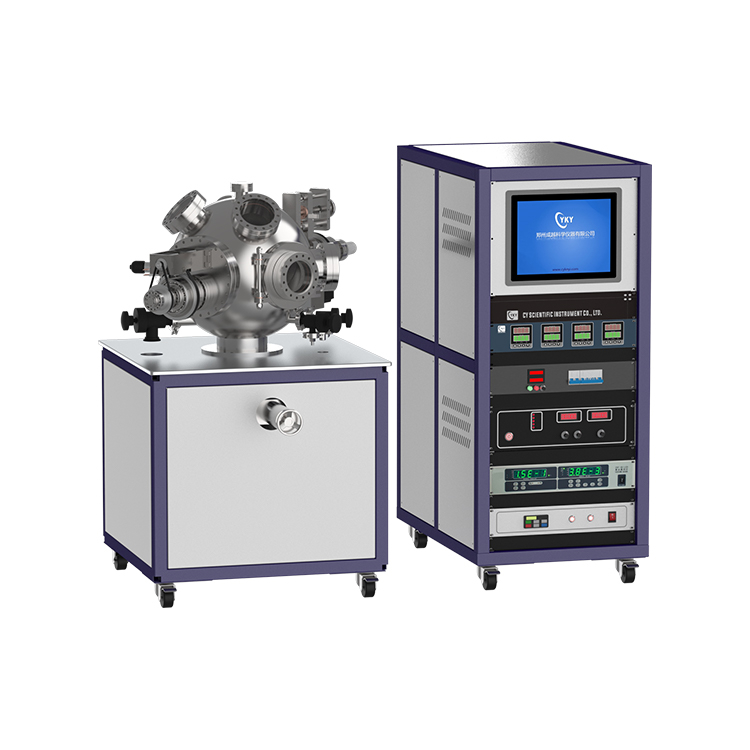

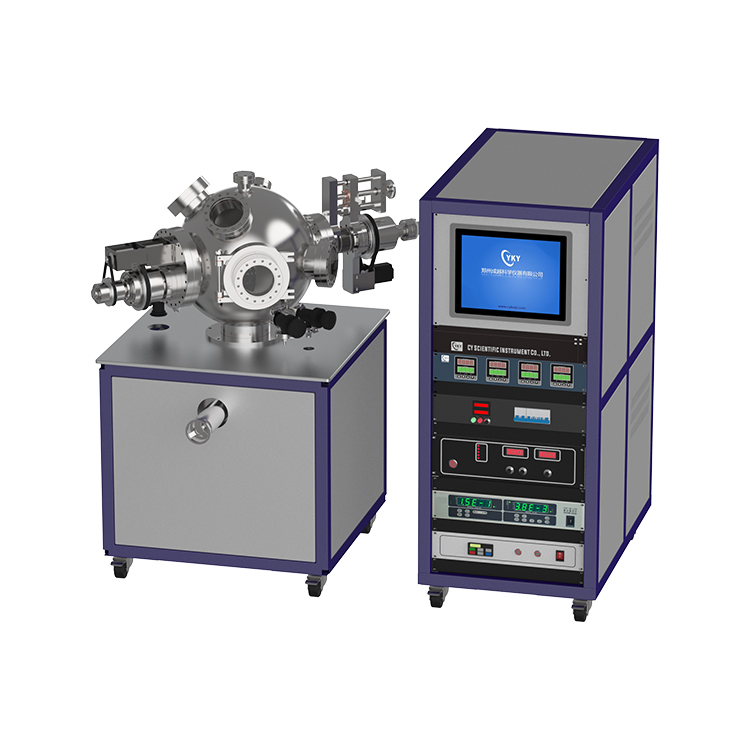

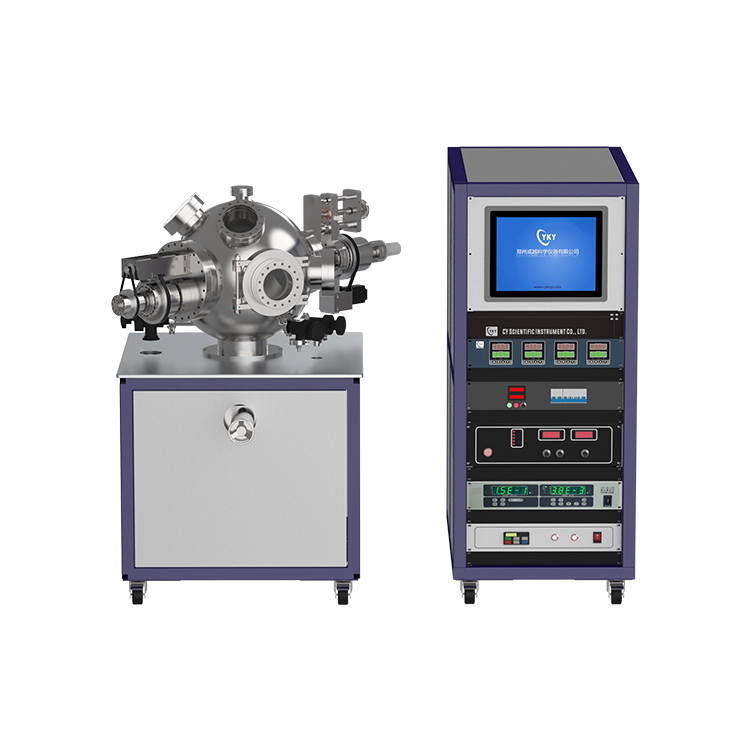

Pulsed Laser Deposition (PLD) is a widely used thin-film deposition technique. It involves rapid sputtering and evaporation of target material using pulsed laser, producing a film with the same composition as the target. The unique aspect of PLD is that the energy source (pulsed laser) is located outside the vacuum chamber, allowing a wide dynamic range of working pressure during material synthesis. By controlling the deposition pressure and temperature, a series of nanostructures and nanoparticles with unique functions can be synthesized. Additionally, PLD is a "digital" technique that allows process control at the nanoscale. The equipment is made entirely of high-quality stainless steel, with metal and rubber seals ensuring an aesthetically pleasing and reliable construction.

Pulsed Laser Deposition Product Features:

.High Energy Density:

Pulsed lasers have high energy density, allowing rapid heating and evaporation of the target material, effectively ablating even high melting point materials.

2.Versatile Material Processing:

Capable of handling various materials, including metals, ceramics, semiconductors, superconductors, and composites.

3.High-Precision Film Growth:

Offers atomic-level precision, enabling precise thickness control suitable for growing nanoscale films.

4.Flexibility and Adjustability:

By adjusting laser parameters (such as energy density, pulse duration, repetition frequency) and deposition conditions (such as substrate temperature, background gas pressure), the structure and properties of the film can be influenced.

5.Deposition of Composite Materials:

Capable of depositing complex compound films while maintaining the stoichiometry of the target material.

6.Multilayer Structure Preparation:

By changing the target or controlling the laser pulse sequence, multilayer structures or superlattices can be prepared on the same substrate.

7.High Vacuum Environment:

Typically conducted in high or ultra-high vacuum environments to reduce impurity contamination and ensure high film purity.

8.Rapid In-Situ Diagnostics:

Can integrate optical, electronic, and X-ray diagnostic techniques to monitor the film growth process in real time.

9.Heteroepitaxial Growth:

Suitable for epitaxial growth on substrates with significant lattice mismatch.

Purchase information:

If you are interested in our Pulsed Laser Deposition Equipment, please contact us for more information and quotes.

Contact number: 156 3719 8390

Email: shirley@cysitech.com

Contact person: shirley

WeChat: 18736046549

Pulsed Laser Deposition Technical Specifications:

 Main parts:

 Application Fields:

1.Thin Film Materials Research:

PLD is used to prepare various oxide, metal, ceramic, and semiconductor films. Its precise composition control and layer thickness adjustment capabilities make it an ideal tool for researching new and composite materials.

 2.Superconducting Materials:

PLD technology is widely used to prepare high-temperature superconducting films, such as yttrium barium copper oxide (YBCO) materials. It enables high-quality film growth suitable for the development of superconducting devices.

3.Microelectronics and Optoelectronics:

In microelectronics and optoelectronics, PLD is used for depositing functional films for integrated circuits and optical devices, such as insulating layers, dielectric layers, and conductive layers.

 4.Sensors:

PLD technology can be used to manufacture high-sensitivity chemical and biological sensors by depositing specific functional films on the sensor surface to enhance performance.

 5.Solar Cells:

PLD is used to prepare thin-film solar cell materials, particularly for the deposition of silicon, perovskite, and CIGS films to improve photoelectric conversion efficiency.

 6.Optical Coatings:

Used for preparing films for optical elements such as anti-reflective coatings, filters, and mirrors, PLD provides high-quality film uniformity and optical properties.

 7.Biomaterials:

In the biomedical field, PLD is used to prepare biocompatible coatings to enhance the biocompatibility and corrosion resistance of implant devices.

 8.Magnetic Materials:

Used to prepare magnetic films for magnetic recording and storage devices, such as perovskite-type ferroelectric films and spintronic materials.

 Application Cases (Thin Films Based on Semiconductor, Nanocomposite, and Other Solid-State Materials for Gas Sensor Applications)

Steps generally involved in preparing gas sensors using pulsed laser deposition (PLD) technology include the following key stages:

 1.Material Selection:

Select suitable target materials, typically oxides or semiconductors, such as titanium dioxide (TiO2), zinc oxide (ZnO), or tin oxide (SnO2), which have good gas sensitivity.

 2.Target Preparation:

Prepare and install the target, fixing it in the appropriate position in the PLD equipment to ensure the laser can effectively hit the target surface.

 3.Substrate Preparation:

Choose appropriate substrate materials, such as silicon wafers, glass, or alumina, clean and install them on the substrate stage inside the deposition chamber. Ensure the substrate surface is clean and free of contamination to obtain high-quality films.

 4.Vacuum Environment Establishment:

Start the vacuum pump to reduce the pressure in the deposition chamber, typically achieving a high vacuum level to minimize impurities. By introducing specific gases (such as oxygen or nitrogen), adjust the composition and pressure of the deposition environment.

 5.Pulsed Laser Deposition (PLD):

 Adjusting Laser Parameters: Choose the appropriate wavelength, pulse energy, and repetition rate to suit the target material's characteristics. These parameters directly affect the interaction between the laser and the target material.

Laser Focusing: Precisely focus the laser on the target material to effectively induce the evaporation or ablation of the target's surface material.

Plasma Plume Formation: After the target is subjected to laser pulses, the material evaporates, forming a plasma plume. The atoms and molecules in the plume migrate and deposit on the substrate to form the desired thin film.

6.Monitoring Thin Film Growth:

 Real-time Monitoring: During the thin film growth process, use online monitoring tools to continuously monitor the thickness and optical properties of the thin film to ensure its quality.

Adjusting Process Parameters: Based on real-time monitoring results, dynamically adjust process parameters such as laser pulse energy and target position to optimize thin film deposition.

7.Post-processing and Annealing:

Annealing Treatment: The deposited thin film often requires annealing to improve its crystal structure and surface properties. Annealing can eliminate defects and improve the uniformity and stability of the thin film.

Parameter Optimization: Select appropriate annealing temperature and time based on the characteristics of the thin film material and the application requirements of the sensor.

8.Electrode Preparation and Packaging:

Electrode Preparation: Use evaporation or sputtering techniques to prepare conductive electrodes on the thin film, ensuring good adhesion between the electrodes and the film for effective signal collection.

Packaging: Properly package the sensor to protect it from external environmental influences and ensure its long-term stability and repeatability.

9.Sensor Performance Testing:

Performance Evaluation: Conduct gas sensing performance tests on the sensor to evaluate its sensitivity, selectivity, response time, and recovery time for the target gas.

Performance Optimization: Optimize sensor performance by adjusting the thickness, structure, or composition of the thin film.
